TRUCK WITH LOADING GRAPPLE
TRUCK WITH LOADING GRAPPLE FEATURES
● All-round use. Install the hand on the truck, which can be used for road transportation and cargo handling.
● Flexible operation and adapt to various working conditions. The truck's grip is hydraulically driven and the robotic arm can be rotated 360 degrees and folded or stretched freely.
● Save resources and improve work efficiency. It realizes one-person operation of road transportation and cargo loading and unloading, and can complete the loading and unloading of various light and heavy goods by itself.
● High security. In the process of special cargo handling and loading with high risk factor, such as medical waste, inflammable and explosive materials, etc., the truck can avoid direct contact between workers and materials.

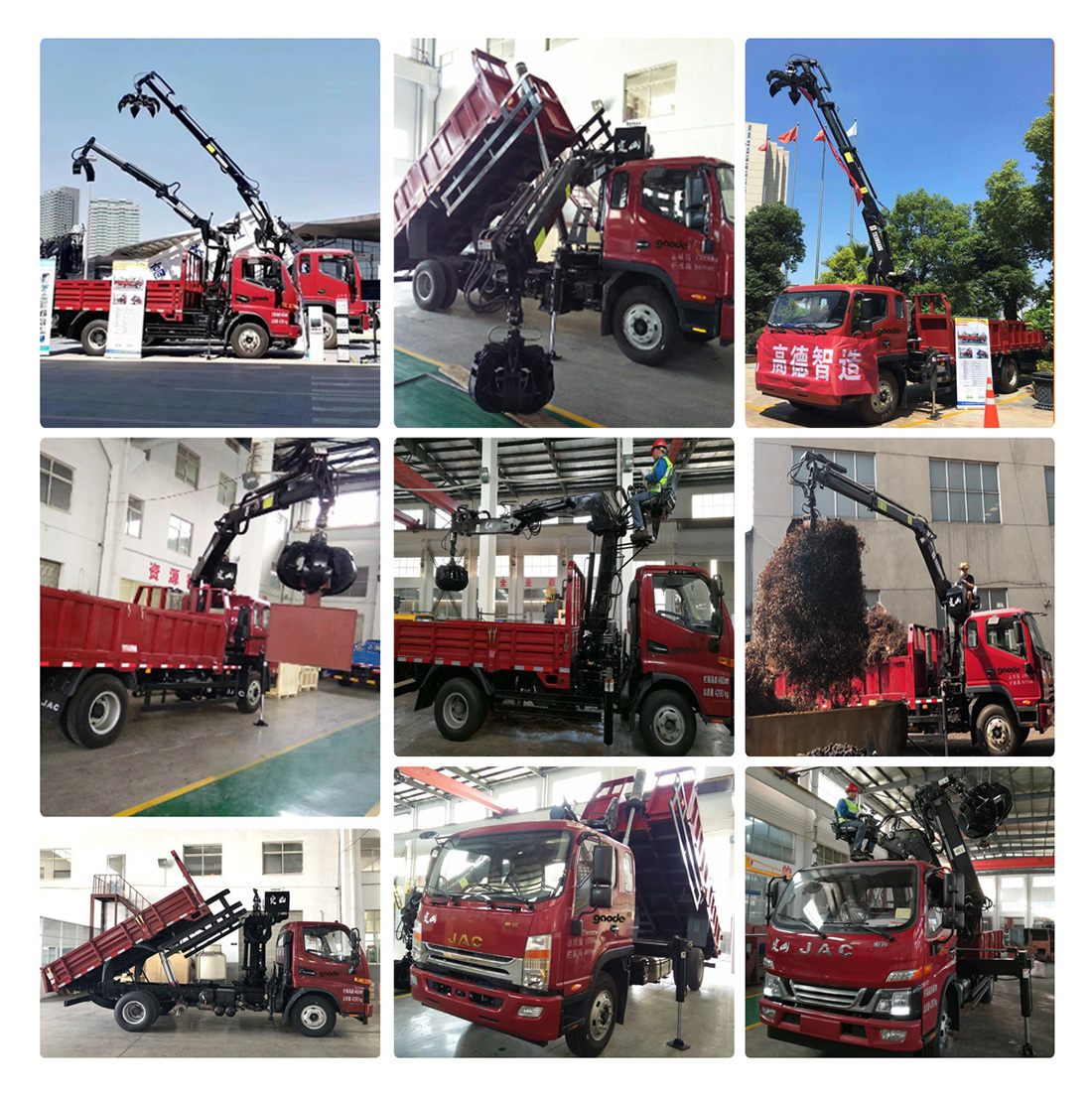

PRODUCT OVERVIEWS
PRODUCT PARAMETERS
Vehicle parameters | Model | GDP5160JSQ |
Vehicle/Chassis/Emission standards | Jianghuai HFC3161P70K1E2V National V standard | |
Max after loading weight | 15595kg | |
Weight before loading | 9200kg(Optional 9650kg) | |
Quantity of load | 6200kg(Optional 5750kg) | |
Grapple parameter | The inside dimension of the container(L*W*H) | 5700*2300*600 |
Max Rising quantity | 2000kg(Optional 3000kg) | |
Max lifting moment | 3.6tm | |
Max operating radius | 8.0m | |
Operating range | 1.8~8.0m | |
Workbench rotation degree | 406° | |
Working pressure | 24MPa | |
Grab petals | 5 | |
Rotation degree of grab | 360° Unlimited | |
Volume of grab | 0.25m³ | |
Pump outflow | 32cc/r | |
Lifting capacity | 1.8m/2000kg | |
3.6m/1050kg | ||
4.8m/800kg | ||
6.1m/600kg | ||
6.3m/500kg | ||
8.0m/300kg | ||
Maximum span of support leg | 3.3m |

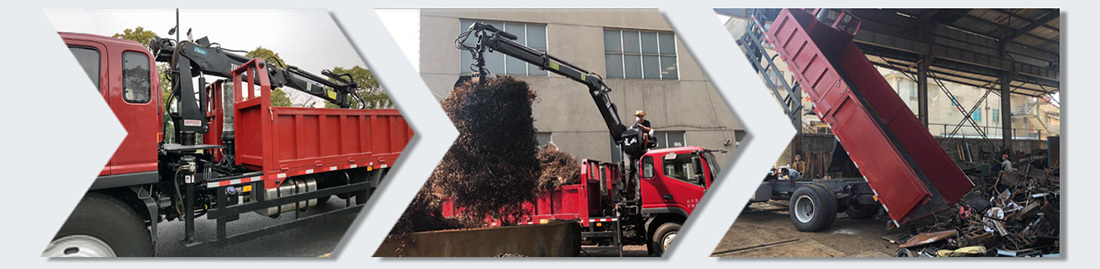

APPLICATIONS

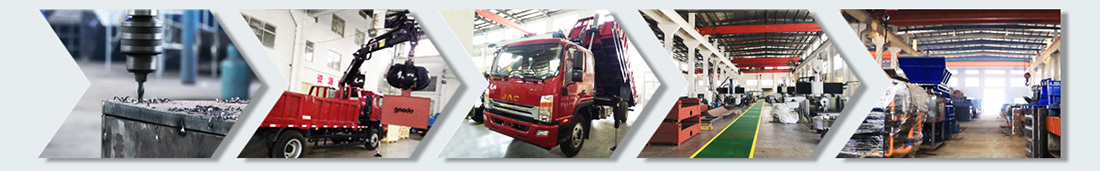

THE WORKFLOW
LASER CUTTING | PARTS OF WELDING | MILLING | MILLING | MILLING |
BORING | BORING | GOLD PROCESSING | SAWING |
TUBE BENDING |
DRILLING | ASSEMBLY | TEST | MACHINING WORKSHOP | ASSEMBLY WORKSHOP |
