Product Category

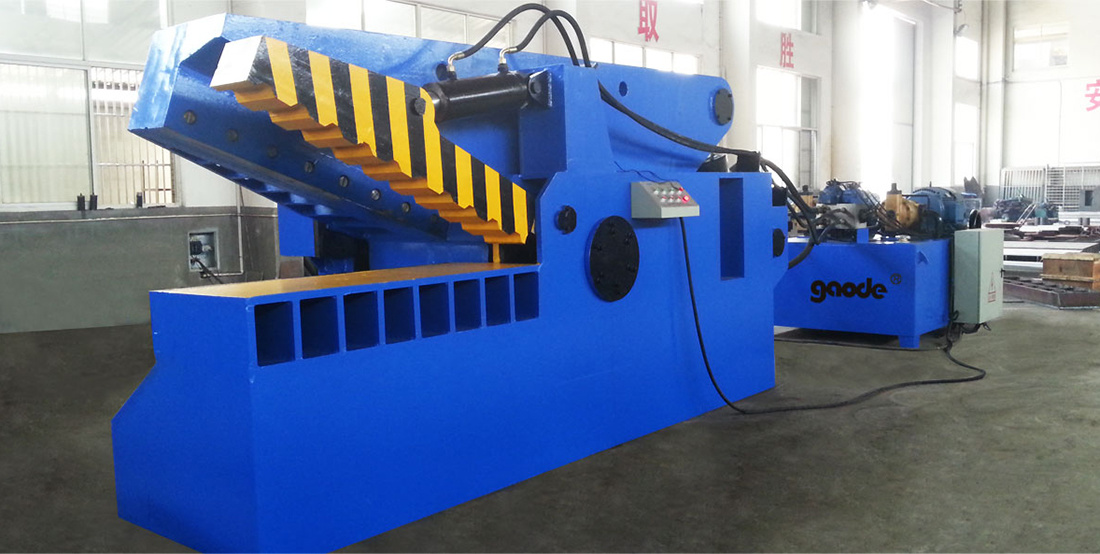

HC43 SERIES ALLIGATOR SHEAR
HC43 SERIES ALLIGATOR SHEAR FEATURES
● The hydraulic driving is adopted for the machine. Installation does not need the foundation screw.
● Work with continuous and single function.
● Voltage/frequency can according to customer requirement. Can be equipped with cooler or heater.
PRODUCT PARAMETERS
| Model | Max shear Force | Max Holding Force | Blade length | Max Blade Opening | Shear Frequency | Material Size | Power | Operation |
| (ton) | (ton) | (mm) | (mm) | (time/min) | (mm) | (kw) | ||
| HC43-60 | 6 | / | 300 | 160 | 10 | Φ15 | 3 |
Manual feeding manual Or automatic operation |
| HC43-250 | 25 | / | 300 | 150 | 10 | Φ25 | 5.5 | |
| HC43-630 | 63 | 16 | 600 | 280 | 9-16 | 30×30Φ35 | 7.5 | |
| HC43-1000 | 100 | 16 | 600 | 280 | 9-16 | 40×40Φ45 | 11 | |
| HC43-1200 | 120 | 20 | 600 | 280 | 9-16 | 45×45Φ50 | 15 | |
| HC43-1600 | 160 | 25 | 700 | 320 | 9-16 | 55×55Φ63 | 18.5 | |
| HC43-2000 | 200 | 25 | 800 | 380 | 9-16 | 65×65Φ75 | 22 | |
| HC43-2500 | 250 | 26 | 1000 | 480 | 9-16 | 70×70Φ80 | 30 | |
| HC43-3150 | 315 | 42 | 1200 | 520 | 8-16 | 80×80Φ90 | 37 | |
| HC43-4000 | 400 | 42 | 1500 | 700 | 8-16 | 90×90Φ100 | 44 | |
| HC43-5000 | 500 | 42 | 1800 | 900 | 8-16 | 100×100Φ110 | 44 |

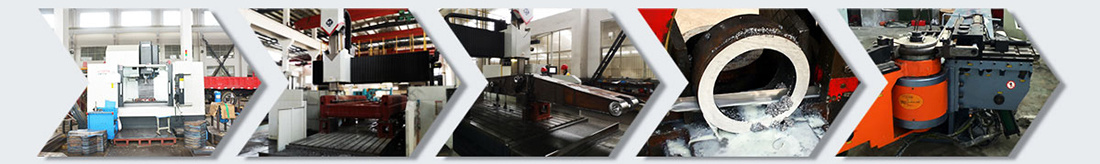

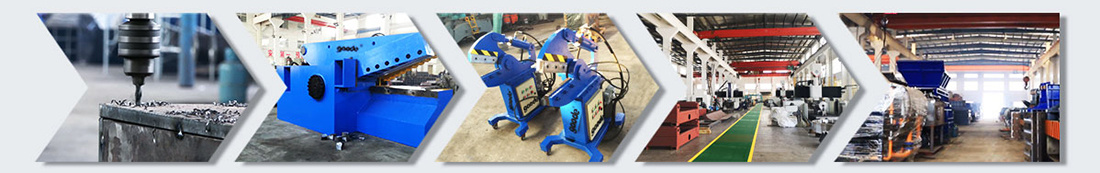

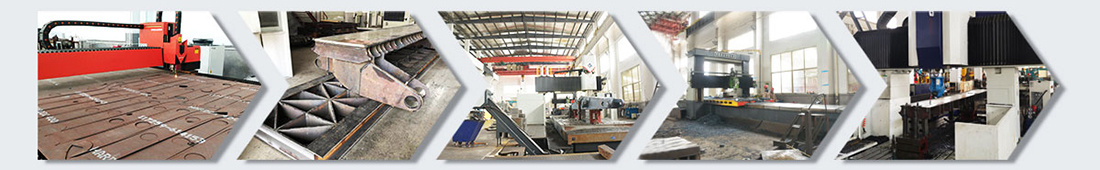

THE WORKFLOW
| LASER CUTTING | PARTS OF WELDING | MILLING | MILLING | MILLING |
| BORING | BORING | GOLD PROCESSING | SAWING | TUBE BENDING |
| DRILLING | ASSEMBLY | TEST | MACHINING WORKSHOP | ASSEMBLY WORKSHOP |
