Product Category

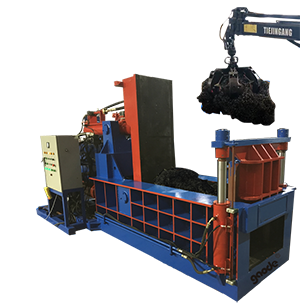

FRONT PUSH METAL BALER
METAL BALER
● It can extrude every kinds of scrap metal, steel shaving, waste copper and waste aluminum into qualified charging such as square column, cylinder, octagon body and other sharps.
● The hydraulic driving is adopted for the machine.
● The manual or PLC automatic control operations.
● Installation does not need the foundation screw.
● Can choose diesel engine drive or motor drive.
● Three out-bag ways:turn out, side push, front push.
● The chamber box size and bale size can according to the customer request.
● Voltage/frequency can according to customer requirement.
● Can add two sides of knives and teeth on the chamber box.
● Can be equipped with cooler or heater.
PRODUCT OVERVIEWS
PRODUCT PARAMETERS
Model | Nominal Force | Press Box Size | Bale Size | Bale Density | Capacity | Cycle Time | Power | Bale Discharging /Operation |
(kn) | (L*W*H)(mm) | (W*H)(mm) | (kg/m³) | (kg/h) | (s) | (kw) | ||
HC81Q-1350 | 1350 |
1100×600×600 1300×600×600 |
(50-300)×600×240 | ≥1800 | 1800-2500 | 150 |
18.5 22 |
Forward-out, manual valve control |

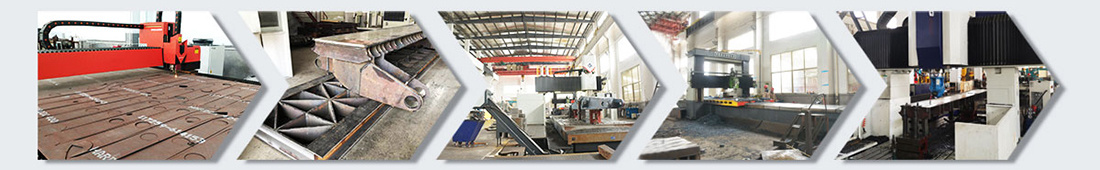

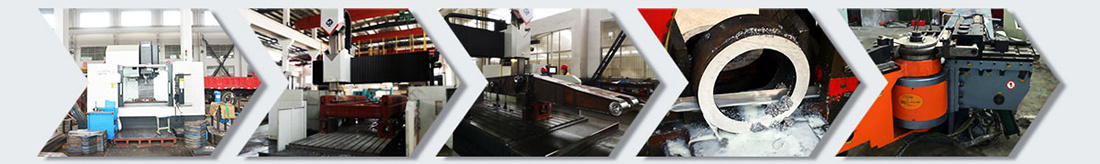

THE WORKFLOW
LASER CUTTING | PARTS OF WELDING | MILLING | MILLING | MILLING |
BORING | BORING | GOLD PROCESSING | SAWING |
TUBE BENDING |
DRILLING | ASSEMBLY | TEST | MACHINING WORKSHOP | ASSEMBLY WORKSHOP |
