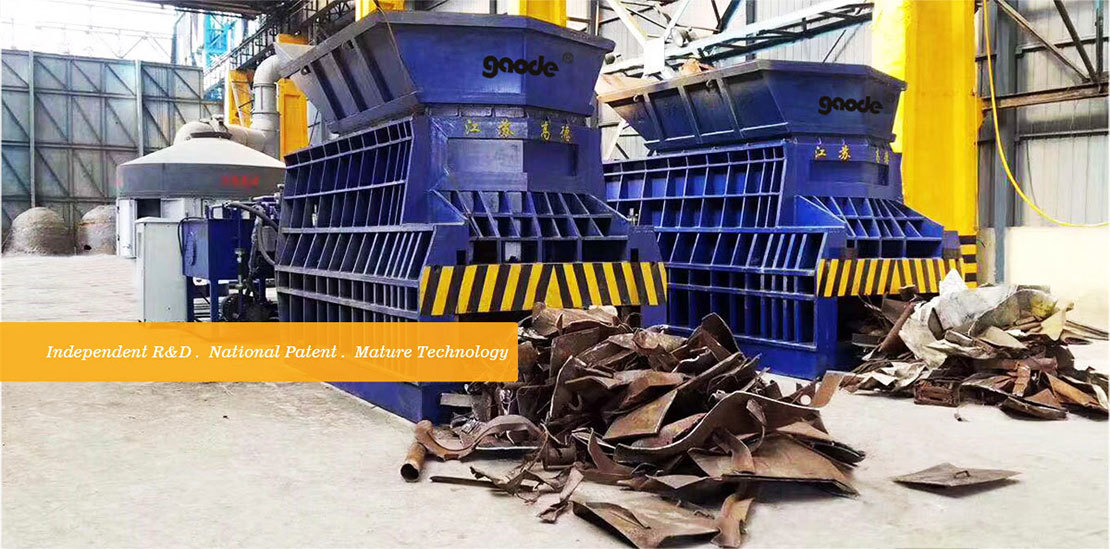

CS SERIES CONTAINER SHEAR

CS series container shear is used for variety of scrap cutting.
PLC automatic control, safe, high efficiency and easy operation.
Mobile, flexible and convenient.
主图
缩略图CS50001
缩略图
缩略图C8000
缩略图CS31501
缩略图CS40001
Description

CONTAINER SHEAR FEATURES







 The forces working on the blade carriage always tend towards the centre, avoiding twisting forces.

 All inner surfaces have a Hardox-wear plate cover or imported wear resistant plate and therefore undergo less wear.

 The scrap is introduced from above, due to the movement of the pre-compressor the scrap automatically slips down and the cut scrap is pushed out of the front.

 Easy to installation and operation.

 Low specific investment and running costs.

 Efficient one-man loading, cutting and removal from one or several Container Shears using an excavator.

 Little space required.







PRODUCT OVERVIEWS

CS SERIES CONTAINER SHEAR



PRODUCT PARAMETERS

Model Press box width Shearing length (customize) Capacity Cutting force Power
(mm) (mm) t/h
CS-3150 1000 300 3-6 315 T 22kw*2
CS-4000 1400 400 5-8 400 T 37kw*2
CS-5000 1400 400 7-10 500 T 45kw*2
CS-6300 1400/1600 400 or 500 8-15 630 T 55kw*2
CS-8000 1600 400 or 500 12-20/25(If cutting bales) 800 T 55kw*3



ADVANTAGES OF THE HIGH-END CONTAINER SHEAR

 Independent research and development, independent brand, national patent, mature technology

 Imported parts, lower operating costs, higher quality, energy efficient

 Fully enclosed structure, high safety performance and low probability of work injury

 There is a vehicle-mounted mobile customization to meet the needs of the replacement site

 Integrated installation free, ready to use

 PLC control, automatic operation, automatic labor free

 Power system and diesel system are two-pronged, for one choice

 Cycle design, long working hours and low human capital requirements

 Wide application range, less material delivery restrictions, high safety performance

 Independent design, long service life and large shearing force



Application

CS SERIES CONTAINER SHEAR

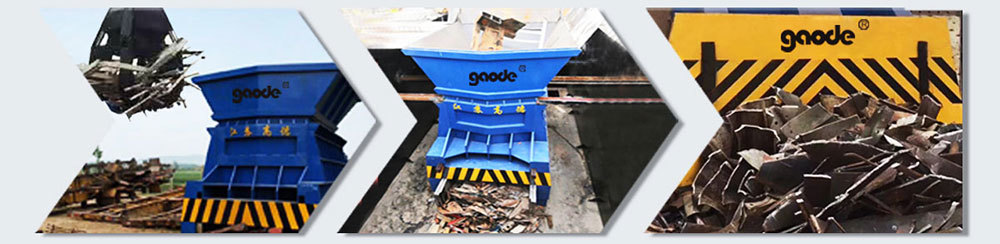

Our Application Scenarios

CS SERIES CONTAINER SHEAR
