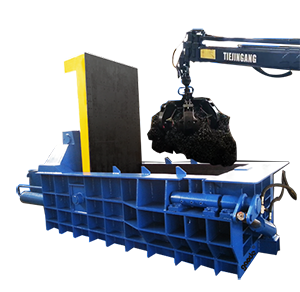

TURN-OUT METAL BALER
HC81 SERIES TURN-OUT METAL BALER FEATURES
● It can extrude every kinds of scrap metal, steel shaving, waste copper and waste aluminum into qualified charging such as square column, cylinder, octagon body and other sharps.
● The hydraulic driving is adopted for the machine.
● The manual or PLC automatic control operations.
● Installation does not need the foundation screw.
● Can choose diesel engine drive or motor drive.
● Three out-bag ways:turn out, side push, front push.
● The chamber box size and bale size can according to the customer request.
● Voltage/frequency can according to customer requirement.
● Can add two sides of knives and teeth on the chamber box.
● Can be equipped with cooler or heater.
PRODUCT OVERVIEWS
PRODUCT PARAMETERS
Model | Nominal Force | Press Box Size | Bale Size | Bale Density | Capacity | Cycle Time | Power | Bale Discharging/Operation |
(kn) | (L*W*H)(mm) | (W*H)(mm) | (kg/m³) | (kg/h) | (s) | (kw) | ||
HC81F-1250 | 1250 | 1200×700×600 |
300×300×/Octagon (150-400)×250×250 |
≥1800 | 1000-1500 | 120 | 15 | Turn-out, manual valve control |
HC81F-1600 | 1600 | 1600×1000×800 |
(400-600)×350×350 (400-600)×400×400 |
≥1800 | 2000-3000 | 150 | 22 | Turn-out, manual valve control |
HC81F-2000 | 2000 | 1600×1200×800 | (400-700)×400×400 | ≥1800 | 2500-4000 | 160 | 30/37 | Turn-out, manual valve control |
HC81F-2500A | 2500 | 2000×1400×900 | (400-700)×500×500 | ≥1800 | 3500-5000 | 160 | 44 | Turn-out, manual valve control |

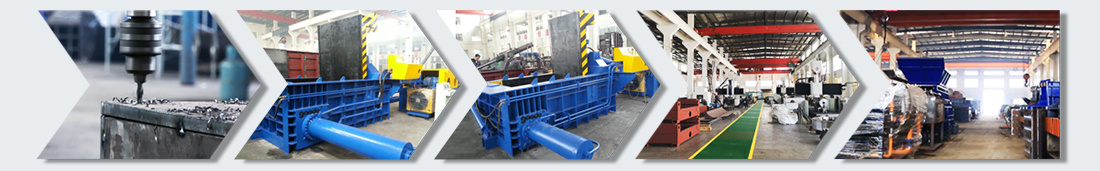

THE WORKFLOW
LASER CUTTING | PARTS OF WELDING | MILLING | MILLING | MILLING |
BORING | BORING | GOLD PROCESSING | SAWING |
TUBE BENDING |
DRILLING | ASSEMBLY | TEST | MACHINING WORKSHOP | ASSEMBLY WORKSHOP |
