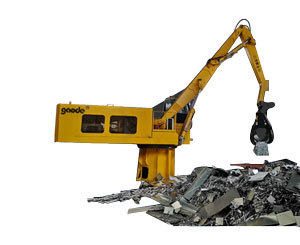

ZGJ Series Fixed Type Grapple
ZGJ Series Fixed Type Grapple FEATURES
● Low input cost.
● The operating radius can be customized according to the site requirements to meet the needs of different venues.
● Power system provides power, energy saving and environmental protection, low cost.
● The boom and grab are complete in specifications, meeting the requirements of various operations of the steel grabber.
● Hydraulic system for increased product performance and operational reliability.
● Compact internal hydraulics with imported fittings for high safety, stable operation and long service life.
● Save labor and increase productivity.
● Equipped with a high-speed rotating tower, which can directly feed the crushing line, eliminating the conveyor belt.
PRODUCT PARAMETERS
Model | Boom length | Effective operation radius | Grab height | Grab weight | Power | Cab height |
(mm) | (mm) | (mm) | (ton) | |||
ZGJ-8500 | --- | 8500 | 8500 | 0.5-2.8 | 30KW+3KW | Optional |
ZGJ-9800 | 6500 | 9800 | 10200 | 1-2.8 | 22KW*2 | |
ZGJ-11800 | 7600 | 11800 | 12500 | 1-2.8 | 22KW*2 | |
ZGJ-13800 | 9600 | 13800 | 14500 | 1-2.8 | 60KW | |
ZGJ-15800 | 9600 | 15800 | 18500 | 1-2.8 | 75KW |

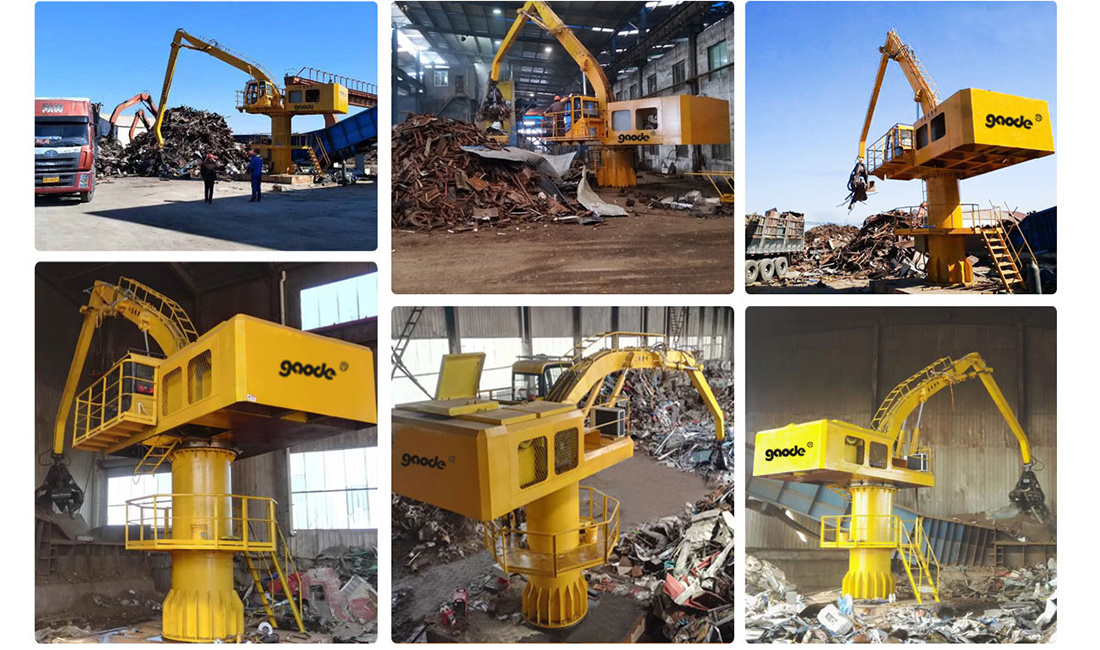

APPLICATIONS
THE WORKFLOW
LASER CUTTING | PARTS OF WELDING | MILLING | MILLING | MILLING |
BORING | BORING | GOLD PROCESSING | SAWING |
TUBE BENDING |
DRILLING | ASSEMBLY | TEST | MACHINING WORKSHOP | ASSEMBLY WORKSHOP |
