SIDE PUSH METAL BALER
Classification：
Key words:
SIDE PUSH METAL BALER
SIDE PUSH METAL BALER
hiddenValue
Product Introduction

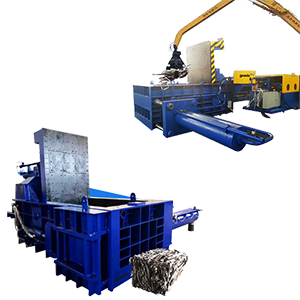

HC81 SERIES SIDE PUSH METAL BALER FEATURES
● It can extrude every kinds of scrap metal, steel shaving, waste copper and waste aluminum into qualified charging such as square column, cylinder, octagon body and other sharps.
● The hydraulic driving is adopted for the machine.
● The manual or PLC automatic control operations.
● Installation does not need the foundation screw.
● Can choose diesel engine drive or motor drive.
● Three out-bag ways:turn out, side push, front push.
● The chamber box size and bale size can according to the customer request.
● Voltage/frequency can according to customer requirement.
● Can add two sides of knives and teeth on the chamber box.
● Can be equipped with cooler or heater.
PRODUCT OVERVIEWS
PRODUCT PARAMETERS
| Model | Nominal Force | Press Box Size | Bale Size | Capacity | Power |
| (kn) | (L*W*H)(mm) | (W*H)(mm) | (kg/h) | (kw) | |
| HC81T-1250A | 1250 | 1200×700×600 | (250-450)×300×300 | 1500-2000 | 18.5 |
| HC81T-1600A | 1600 | 1600×1000×800 | (400-600)×400×400 | 2000-3000 | 22 |
| HC81T-1600B | 1600 | 1600×1200×800 | (400-650)×400×400 | 2000-3000 | 30 |
| HC81T-2000A | 2000 | 1600×1200×800 | (400-700)×400×400 | 2500-4000 | 30/37 |
| HC81T-2000B | 2000 | 1800×1400×900 | (400-700)×400×400 | 2500-4000 | 30/37 |
| HC81T-2500A | 2500 | 2000×1400×900 | (400-700)×500×500 | 3500-5000 | 44/60 |
| HC81T-2500B | 2500 | 2000×1400×1200 | (450-800)×600×600 | 3500-5000 | 60 |
| HC81T-3150A | 3150 | 2000×1400×1200 | (450-700)×600×600 | 3500-5000 | 60 |
| HC81T-3150B | 3150 | 2600×1750×1200 | (450-800)×650×650 | 4000-5000 | 90 |
| HC81T-4000A | 4000 | 2600×1750×1200 | (500-1000)×650×650 | 5000-6500 | 90 |
| HC81T-4000B | 4000 | 3000×2000×1200 | (600-1100)×600×700 | 6000-8500 | 110 |
| HC81T-5000 | 5000 | 5000×2000×1200 | (600-1100)×600×700 | 9000-11500 | 110 |
THE WORKFLOW
| LASER CUTTING | PARTS OF WELDING | MILLING | MILLING | MILLING |
| BORING | BORING | GOLD PROCESSING | SAWING |
TUBE BENDING |
| DRILLING | ASSEMBLY | TEST | MACHINING WORKSHOP | ASSEMBLY WORKSHOP |
